2 Gang Blue Rocker Switch Box with PD Type C & QC 3.0 USB Charger Voltmeter - Perfect for Marine, RV, and Home Electrical Systems

About this item

Multi-Function designed: This switch box is integrated with 2x20 amps Rocker switches rated at 12VDC and PD Type C& QC 3.0 USB charger with LED voltmeter. Suitable for most 12V-24V DC cars, UTVs/ATVs, trucks, trailers, RVs, caravans, buses, marine boats, yachts etc.

Weatherproof Box: The switch box is designed to be waterproof, weatherproof and splash proof. The box is made of quality aluminum and protects the switches against short circuit and damage. All switches are pre-wire for easy installation.

USB Charger and Voltmeter: PD Type C and QC 3.0 USB Charger enable you charge two devices simultaneously at full speed. It works for all USB-powered devices. Makes the charger 40% faster than conventional chargers; The voltmeter is built in the center of the USB charger, clearly shows the current readings of working volts, easily notice the voltage condition of the vehicles.

Surface Mount: With surface mount enclosure. The box can be mounted either on the dash board, under dashboard, middle console or anywhere on the car. The bracket can be adjusted 360 degrees. This gives you more mounting options.

Wide Application: The switches allows you to control up to 2 different devices, such as Led Light Bars, Rear Lights, Rock Lights, Windshield Lights, Off road Lights, Sasquatch Lights, Zombie lights and Wench power, etc. The complimentary transparent and night glow stickers enables you to DIY the switch according to your preference.

Package Includes: 2 Gang pre-wired switch box with PD Type C and QC 3.0 USB charger and voltmeter, 1X transparent stickers, 1X night glow stickers, 6 screws.

Integrated with PD Type C& QC 3.0 USB Charger, voltmeter, and waterproof box,this switch box is suitable for Cars, Trucks, Boats, trailers, RV, Caravan, Camper, UTV /ATV, and Other 12-24 VDC Applications. It can be mounted either on the dashboard, under the dashboard, middle console, or anywhere on the car.

Specifications:

Input voltage: 12V/24V DC
Amp rating for each switch: 12V DC/20AMP; 24V DC/10AMP
Switch Terminal: 5 PIN
LED Color: Blue
Voltmeter: 12V/24V DC

Feature

PD Type C & QC 3.0 USB Charger with Voltmeter

Enable you to charge two devices simultaneously at full speed. It works for all USB-powered devices. Makes the charger 40% faster than conventional chargers.

The Voltmeter is built in the center of the USB charger, clearly shows the current readings of working volts, easily notice the voltage condition of the vehicles.

5 PIN Switch

Material: Superior ABS+PC
Switch Mode: ON-OFF, 5 PIN SPST
Backlit: Blue
Output: 12V/24VDC

Wide Use

This product is available for controlling LED light bar, LED work lights, fog lamps, driving lights, headlights, taillights, off road lights, etc.

The switch box comes with PD Type C & QC 3.0 USB charger with LED voltmeter, which enables you charge two devices simultaneously at full speed.

More Installation Options

With surface mount enclosure. The box can be mounted either on the dash board, under dashboard, middle console or anywhere on the car. This gives you more mounting options.

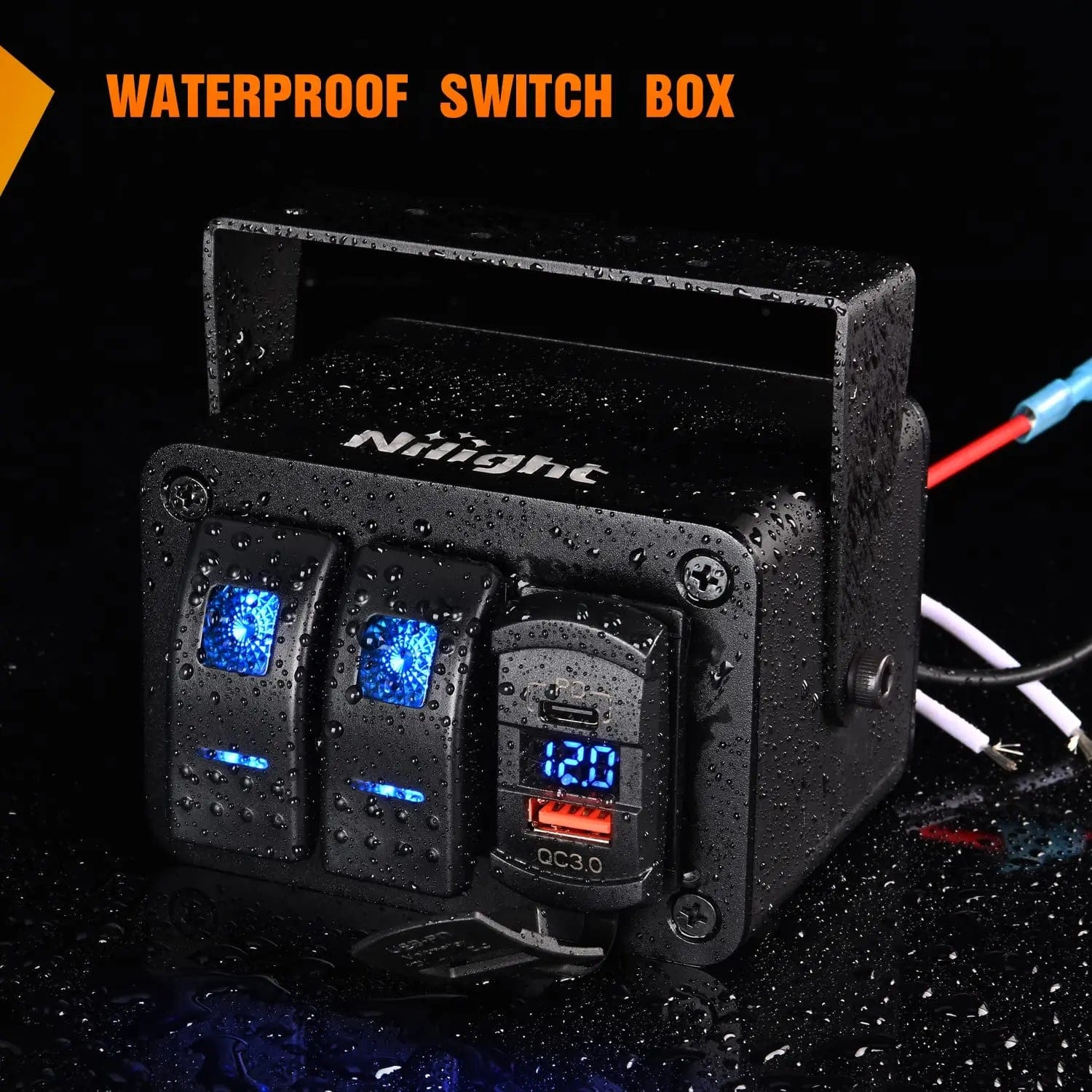

Waterproof Switch Box

The switch box is designed to be waterproof, weatherproof and splash proof. The box is made of quality aluminum and protects the switches against short circuit and damage.

Detachable Switch Box

The Switch box is detachable. Enables you to install it according to different scenario. All switches are pre-wire for easy installation.

Meanwhile, it also gives you a better understanding of the inner workings of the switch.

Pre-wired wiring harness

Rocker switch panel with pre-wired wiring harness for you to easily install in both 12V and 24V vehicle, yacht, ship, caravan, truck, etc.

The wiring harness on the switch can be easily disconnected by pressing down the clips.The wiring harness on the switch can be easily disconnected by pressing down the clips.

Night Glow DIY Sticker

Package comes with an 132PCS night glow stickers with various patterns and words which meet your DIY needs and help you find the switch in the dark easily.

Durable In Use

The switch is very flexible for turning on or off. It can stand up to 10,000 times pressing under normal use.
