270Pcs Heat Shrink Wire Connectors - Waterproof Electrical Wire Terminals for Marine, Automotive & Home Wiring - DIY Electrical Repair & Cable Splicing Kit

Related Video

About this item

• Excellent Electrical Conductivity: The middle conductor is made of high-quality Pure Tinned copper. The tin coating can also increase the current and corrosion protection.
• Multifunctional Connector Kit: This heat shrink connector is compatible with a variety of applicants. For example cars, motors, vehicles, boats, and other scientific projects.
• Strong Crimps: Thick copper drums ensure high tensile strength, tear-resistance, and prevent mechanical damage. The cable does not slide out of the connector.
• Ease of Application: Strip wire insulation, crimp terminal barrel with a wire crimper, and apply heat with a heat gun while rotating a connector. Heat shrink tubing will reduce in size and adhere to the wire. No soldering kit is needed. Start making secure and durable connections in seconds.

Shrinkage ratio 3: 1

Minimum shrink temperature: 175°F (80°C)

Full recovery temperature: 265°F (130°C)

Operating temperature: -65°F–255°F (-55°C - 125°C)

Connector types and quantity: Rings*120; Fork*30; Hook*30; Butt*30; Male*30; Female*30;

Yellow: 10-12AWG, Max Voltage : 600V, Max Current : 48A

Blue: 14-16AWG, Max Voltage : 600V, Max Current : 27A

Red: 16-22AWG, Max Voltage : 600V, Max Current : 19A

Nilight heat shrink connectors are compliant with ROHS, ISO9001:2008, SGS and CE standards.

Ideal for use in shops, garages, automotive electricians, machinery, workshop cars, trucks, motor homes, or other scientific projects.

Feature

Heat shrink electrical connectors

Electrical Terminals Kit allows you to choose from various specifications and colors. Rings Fork Hook Spade Butt Splices. These can meet your various needs. Allows you to complete your work or project more brilliantly.

Waterproof and anti-corrosion

The outer material is a polyolefin tube, and the inside is made of hot melt adhesive. These materials provide greater safety for wire connectors. In addition, the insulation seal can effectively prevent wire corrosion.

Durability

The heat shrink wire connectors have high elasticity and the pipes are not easily deformed. At the same time, it also has excellent tensile strength and resistance to mechanical damage. These can make your terminal life longer.

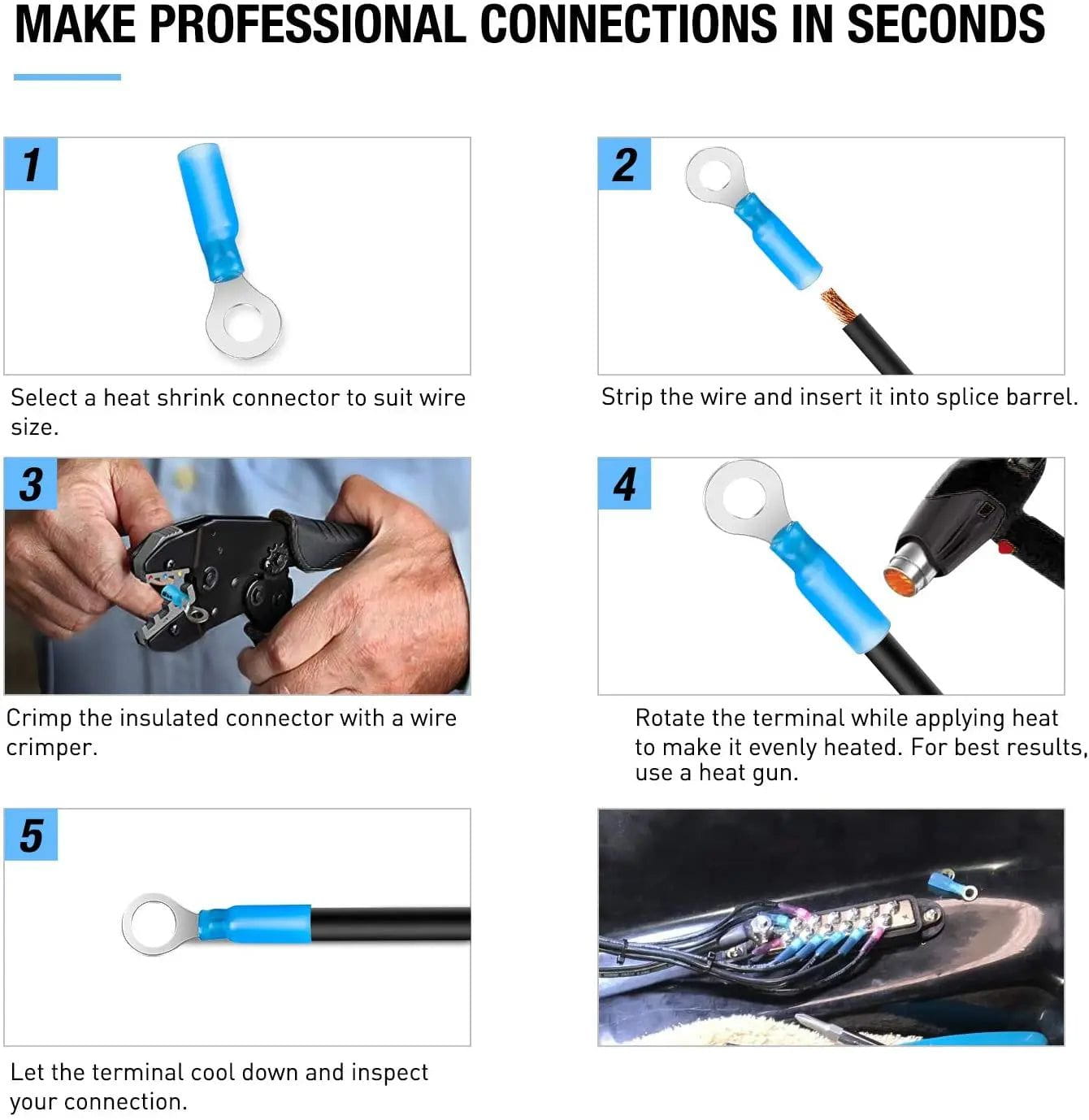

How to use

Strip the Wire

Select a heat shrink connector suit wire size. Strip the wire and insert it into the splice barrel.

Crimp the Terminal

Crimp the insulated connector with a wire crimp.

Apply heat

Rotate the terminal while applying heat to make it evenly heated. For best results, use a heat gun.

Inspect the Connection

Let the terminal cool down and inspect your connection.
