7 Way RV Blade to 4 Way Flat Trailer Wiring Harness Adapter - Heavy Duty Towing Connector for Camper, Boat & Utility Trailers - Perfect for RV Camping, Towing & Outdoor Adventures

Related Video

About this item

• Multi-Tow Design: A great upgrade for a variety of vehicles with a USCAR 7 way socket. It features both standard 4 Pin sockets and 7 Pin plug in case you have multiple trailers with different connectors, adding versatile towing options
• Reliable Connection: This wiring sockets has a 7 way RV USCAR plug which is ready to connect to vehicle with the 7 way USCAR socket. Connectors can be used to connect the taillights, brake lights, turn signals, reverse lights, trailer brakes and auxiliary power
• Easy to Install: The Trailer wiring harness socket plugs into factory 7way USCAR socket on your vehicle with minimal splicing required. It is almost plug and play. The mounting bracket and hardware are also included. connectors can be used to connect the taillights, brake lights, turn signals, reverse lights, trailer brakes and auxiliary power
• Weatherproof: This trailer adapter is designed to Withstand inclement weather conditions. The 7 way plug and 4 way outlet has a spring-loaded dust cover that keeps the connection points dry and protected when not in use. Protects the inner contacts from rust or damage. The black wire loom keeps the wiring contained and protects the harness for long lasting use.
• USCAR-SPECIFIC. This trailer wiring harness socket is designed for specific vehicles with an industry-standard 7 Way USCAR socket

Features both standard 4 Pin sockets and 7 Pin plugs in case you have multiple trailers with different connectors, adding versatile towing options.

Connectors can be used to connect the taillights, brake lights, turn signals, reverse lights, trailer brakes and auxiliary power

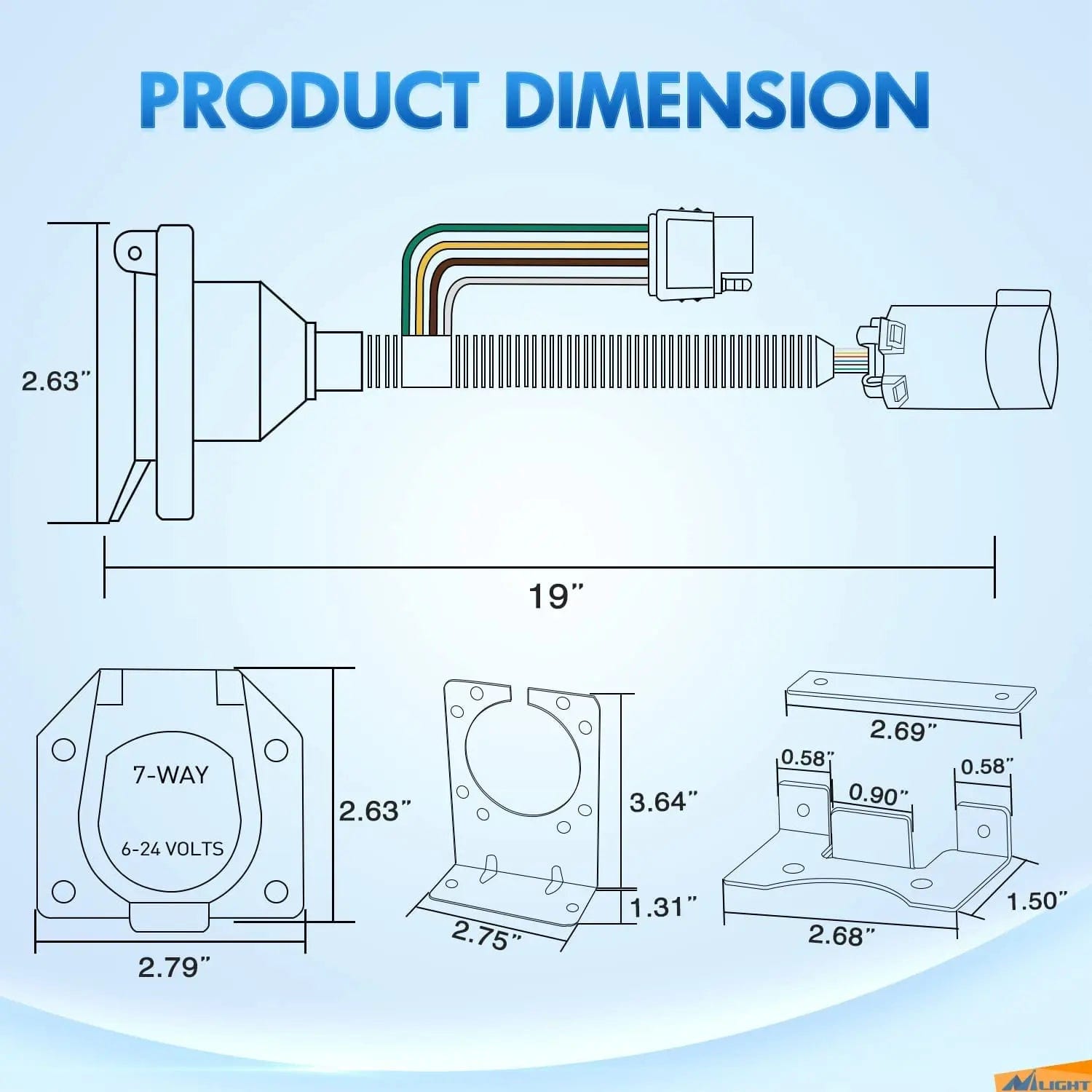

Specification

7 Way RV Plug

Can be Connected to the 7-way RV socket. The plug is tin-contacted. The covers are made of durable ABS plastic, which protects the adapter and never gets rusting or corrodes; Wire loom keeps wires contained and well protected for long-lasting use.

4-Way Flat Trailer Socket

Can be connected to the 4-way flat trailer plug. This socket is equipped with a tight-fitting dust cover to keep the socket clean when not in use. provides well-protection, great corrosion-resistance

7 Way USCAR Plug

7-way RV USCAR plug which is ready to connect to the vehicle with the 7-way USCAR socket. Connectors can be used to connect the taillights, brake lights, turn signals, reverse lights, trailer brakes, and auxiliary power. Designed for specific vehicles with an industry-standard USCAR socket.

Mounting Brackets Installations

7 way plug

Install the 7-way blade connector onto the mounting bracket using the supplied screws and nuts.

4 Flat Socket

Install 4 flat sockets into another supplied bracket.

Combination

Tighten screws.

7 way blade Plug: Connects to 7 way blade trailer outlet

4 way flat outlet: Connects to 4 way flat trailer end

7 way USCAR Plug: Connects to Vehicle with USCAR socket
