52 Inch 783W 78000LM Triple Row Curved LED Light Bar - Spot Flood Combo with 12AWG Wire & 5Pin Switch - Perfect for Off-Road Trucks, ATVs, Boats, and Outdoor Adventures
Free shipping on all orders over $50
7-15 days international
22 people viewing this product right now!
30-day free returns
Secure checkout
35292708
Description
Related Video
About this item
Super Brightness: Combo beam with triple row and nest reflector cup design in the middle for extreme light efficiency
Upgrading Reflector Cup: The broad reflective plate on both sides allows multi-angle refraction, ideal for ambient illumination
Curved Design: The curved design can suit most vehicles. The fashionable appearance makes your off-road vehicle looks pretty cool after installation
High Performance: IP67 Waterproof Rate, Efficient Cooling, Die-cast Aluminum Alloy Housing, Over 30, 000 Hours Life Span
Quality Wire: 12 gauge wire with inline blade fuses, rocker switch, relay all in one kit. Excellent electrical conductivity, outstanding bending performance, high temperature, and melting resistance. Long-lasting and always ready to use
Specification
| LED Power | 783W/PC |
| Lumen | 78000LM/PC |
| Beam Type | Spot Flood |
| Waterproof | IP68 |
| Operating Voltage | 9-30V DC (fits 12V, 24V vehicles) |
| Color temperature | Pure White 6000K-6500K |
| Operating temperature | -40℃+85℃ |
| Lifespan | 50,000 Hours |
| Material | 6063 Aluminum housing, Aluminum substrate circuit board, high-quality led chips, PC lens |
| Package Included | 1PCS 52 Inch LED Light Bar Kit; |
Features
Unique Triple Row Design
Triple row superior-quality LED chips encircled by spot beam nest reflector cups, focus more effective light, enhancing light efficiency to the max.
Extraordinary Waterproof Performance
The silicone sealing strip and waterproof rubber pad combined with the advanced groove design effectively prevent water and dust from entering.
Effective Heat Dissipation
High-quality heat conduction silicone gel together with redesigned aluminum alloy housing provides a superior cooling effect for a long working lifespan.
Rocker Switch
The switch is very flexible for turning on or off. It can stand up to 10,000 times pressing under normal use. Made of ABS and PC of premium quality, the switch is impact and heat-resistant. The high-quality pin is of good electrical conductivity.
Relay
Adopted with high-quality materials, the power relay plays an important part in safety protection and circuit conversion. It effectively protects the circuit and the lighting system.
Blade fuse with water-resistant fuse holder
The inline blade fuse with a water-resistant fuse holder act as the First Line of defense against overcurrent and short circuit which is more scientific and safer. Four wire connectors are included for a safer connection.

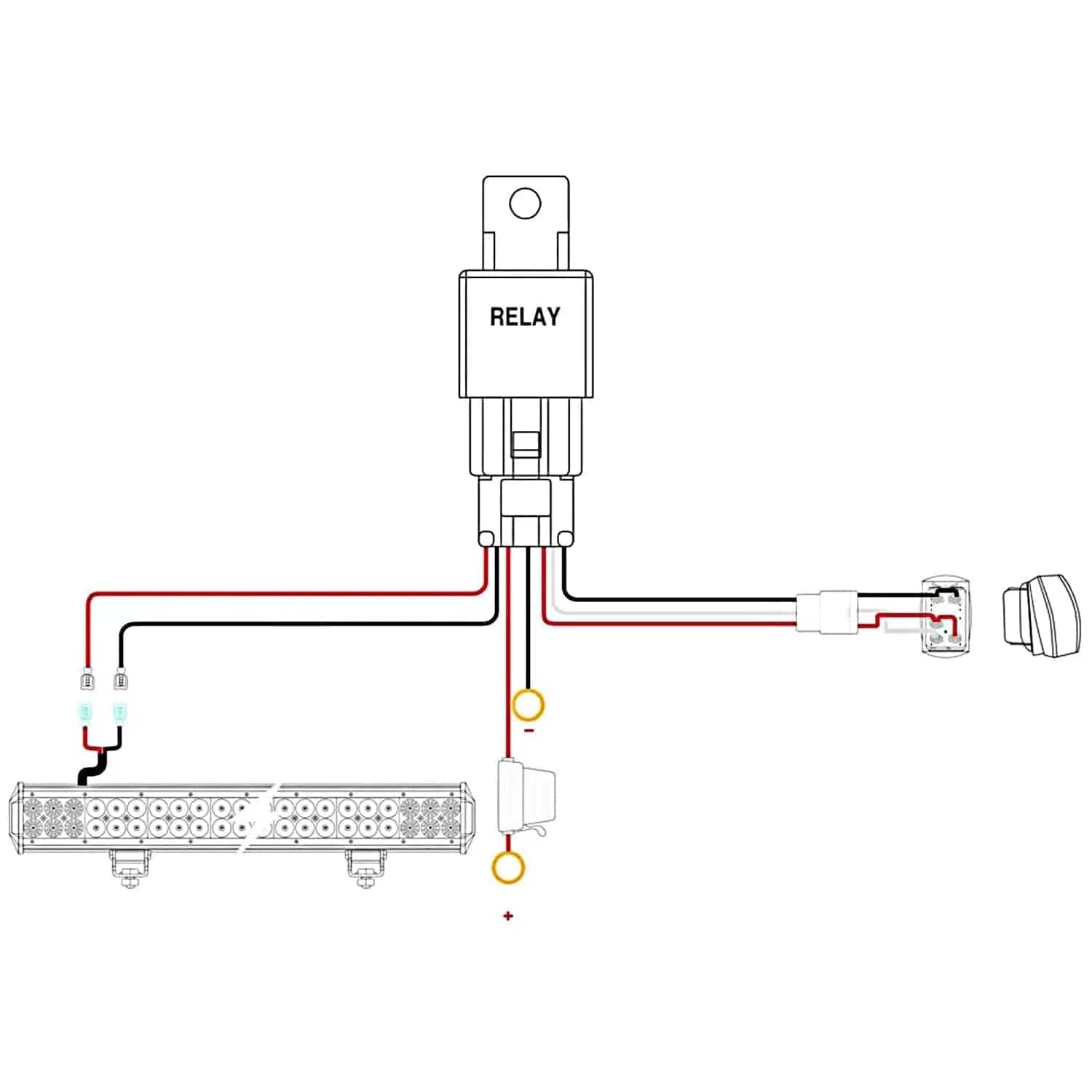

Diagram
(Easy Plug N Play)
Applications
Applied positions: Bumper Light, fog light, headlight replacement light, windshield light, side light, roof light, back-up/reverse light;
Applied vehicles & equipment: Jeep, truck, Subaru, ATV, UTV, SUV, motorcycle, dirt bike, golf cart, lawn mower, tractor, snow blower, trailer, forklift, boat, excavator, dozer, harvester, etc.
Applied fields: Offroading, firefighting, hunting, fishing/boating, farming/agriculture, construction, mining, gardening, household (Note: For household lighting, you need to use a voltage transformer/converter to convert the AC 110-120V To DC 12V.)
Package Included
1 Pcs 52-Inch 783W LED Light Bar and 12AWG Heavy Duty 12V 5Pin Rocker Switch Harness Kit
Note
They are aftermarket parts. NOT D.O.T. approved. Do not use if D.O.T. is required. Before installing this product, please check your state/provincial and local/municipal laws and regulations.
