30Amp RV Power Outlet Panel - Heavy Duty 120V Electrical Receptacle Box for Camper, Trailer & Motorhome - Perfect for Outdoor Camping & RV Power Hookups

About this item

• Flush Mount Power Outlet: This power outlet panel is one of the most used outlets out there. It an be installed on Wall Plate in the house to power the RV and heavy duty high power appliance. Also it is the replacement receptacle for RV power outlet box or generators, food trucks and travel trailers.
• Specifications: 30AMP 125V, NEMA TT-30R, Grounding, 2-Pole/3-Wire, ETL Listed. Industrial Grade and Heavy Duty, Straight Blade. Operating temperature is from -40℉ to 140℉

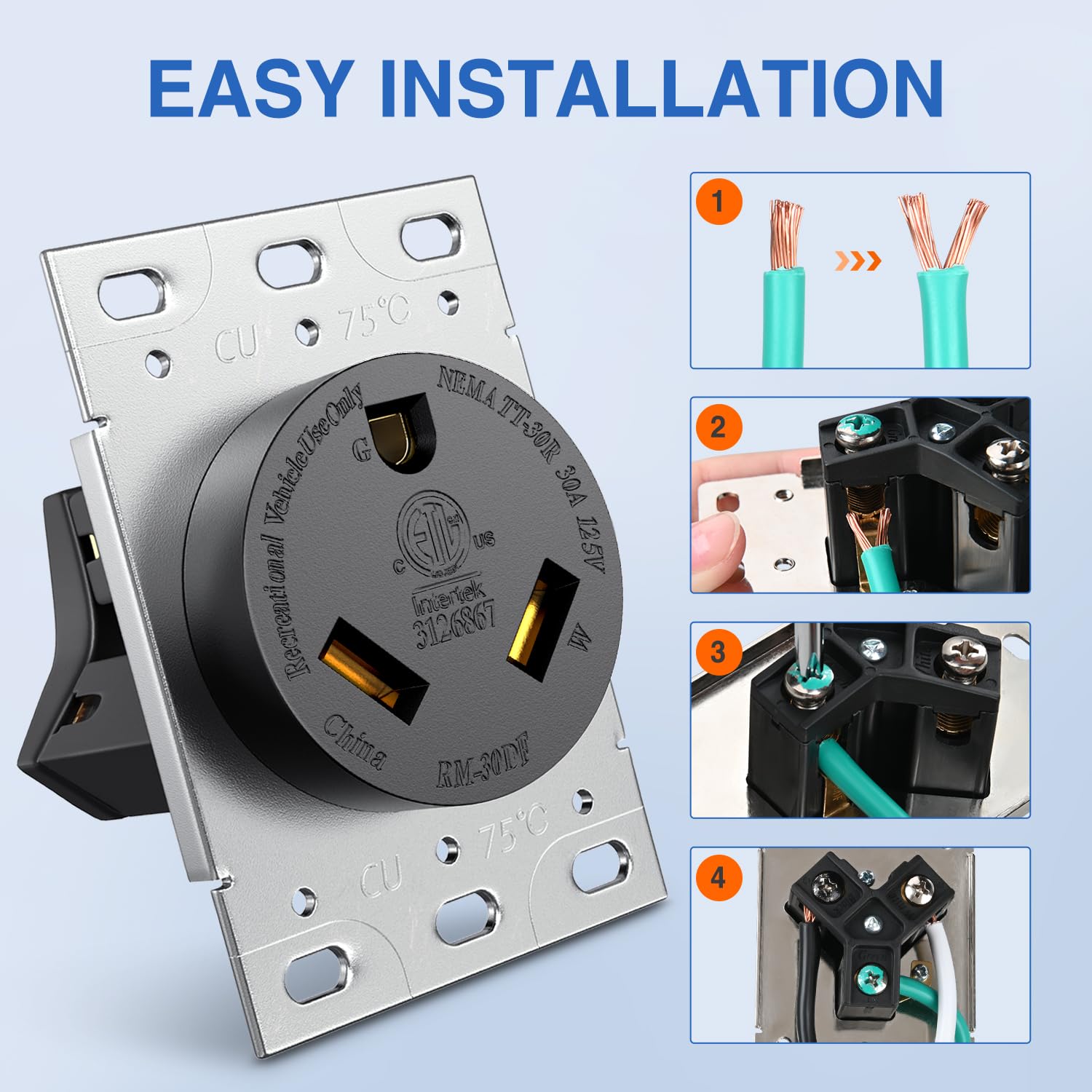

• Easy Installation: This plate are completely ready-to-wire, shorten installation time significantly. Colored-terminals provide an easy and convenient installation. Green terminal connects to Ground wire, black terminal connects to hot wire, Silver terminal connects to neutral wire. Terminals accept for #10 to #4 AWG wires. Fits BOTH single and two-gang enclosure.

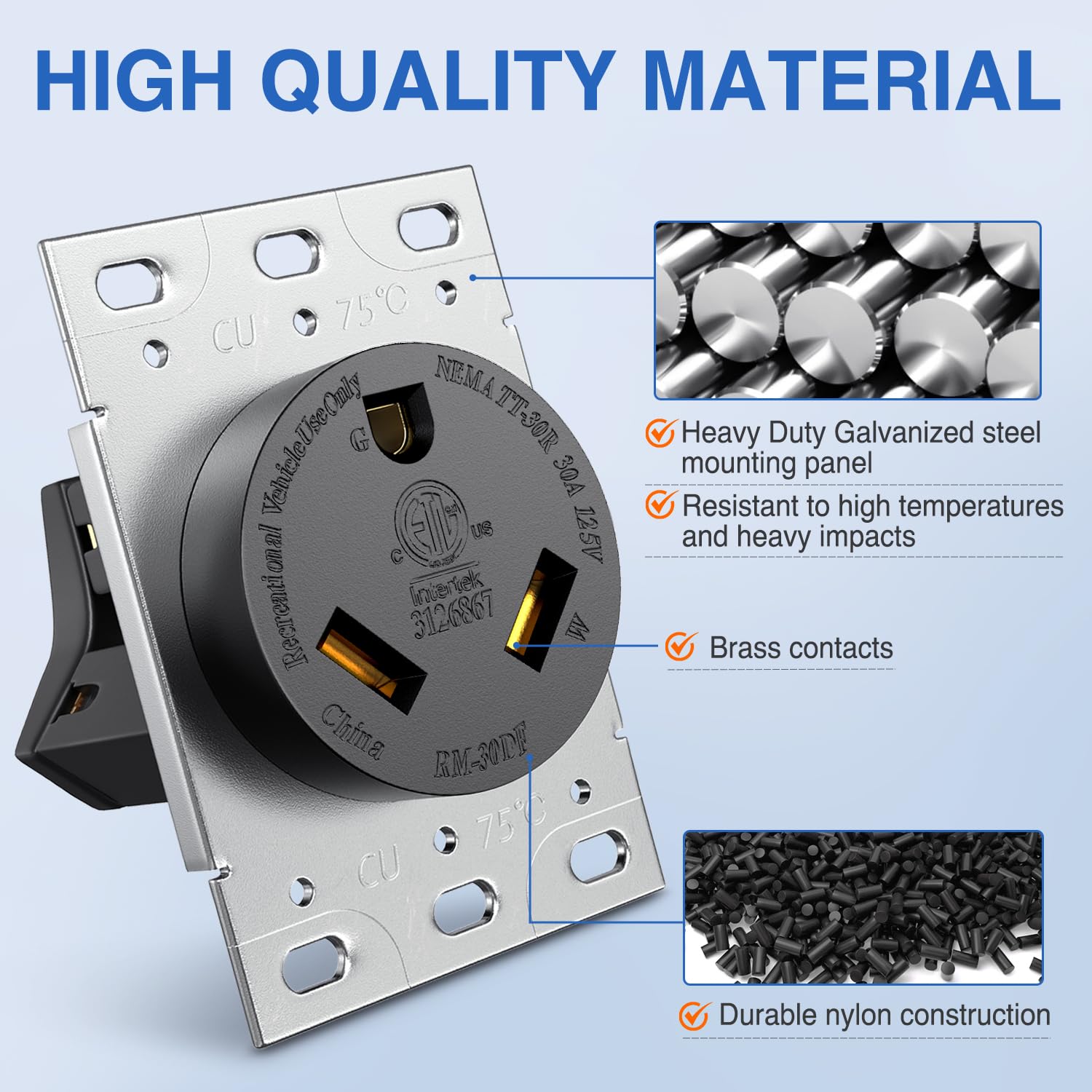

• Superior Quality: Construct with heavy duty galvanized steel mounting panel and toughened nylon housing, it is resistant to high temperatures and heavy impacts. The large and brass contacts produce superior contact pressure that results in outstanding conductivity.
• Package includes: 30 Amp RV Power Outlet Panel, installation guidance. 2 Year Warranty by Nilight.

30 Amp 125 Volt Flush Mount Power Outlet

• Receptacle: 30AMP (TT-30R)
• Max loading: 30A/125V
• Material: Construct with heavy duty galvanized steel mounting panel and toughened nylon housing, it is resistant to high temperatures and heavy impacts.
• Easy Installation: Colored-terminals provide an easy and convenient installation. Green terminal connects to Ground wire, black terminal connects to hot wire, white terminal connects to neutral wire. Terminals accept for #10AWG/3C wire.
• perfects for RVs, generators, food trucks and travel trailers.

Product Features

ETL Certified

Out RV power outlet passes E T L certification, which follows the same safety standards as Underwriter Laboratories or UL.

Fit for Outlet Box

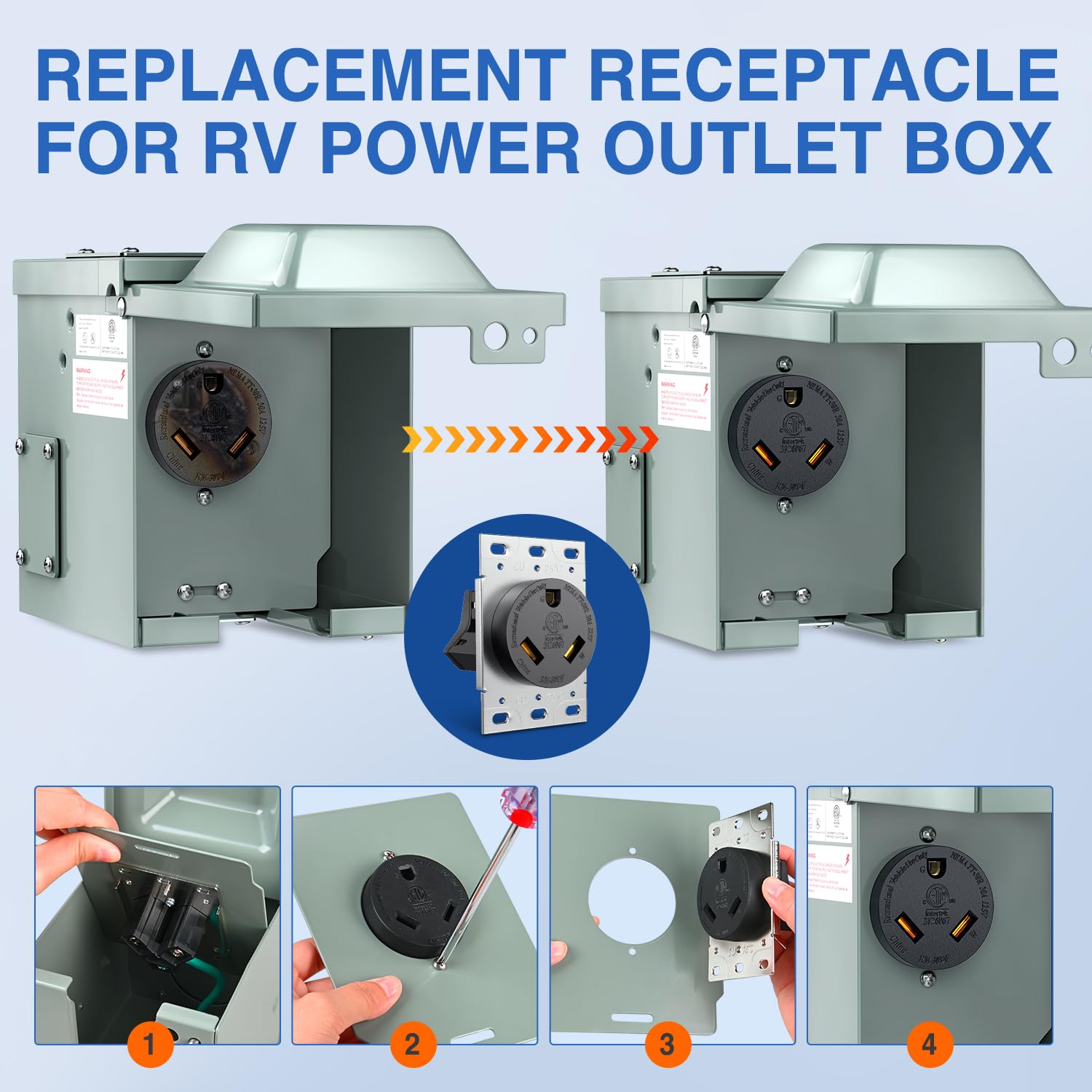

It perfectly fits for the RV power outlet box, which can can be used to replace the original panel directly.

Installation

Compatible with the wall plates with 2in openings.

Easy Use

Colored-terminals provide an easy and convenient installation.

Widely Applications

Superior Quality

Construct with heavy duty galvanized steel mounting panel and toughened nylon housing, it is resistant to high temperatures and heavy impacts.

Easy Installation
